Ammonia decomposition catalyst

HL-A204 Ammonia decomposition catalyst
Commodity description: HL-A204 catalyst is dedicated to ammonia decomposition.
1 .Commodity description

HL-A204 is a kind of sec. reaction catalyst, based on the nickel as the active component with alumina as the main carrier. It is mainly applied to ammonia plant of secondary reformer of hydrocarbon and ammonia decomposition device, using the gaseous hydrocarbon as the raw material. It has good stability, good activity, and high strengh.
2 .The physical and chemical properties

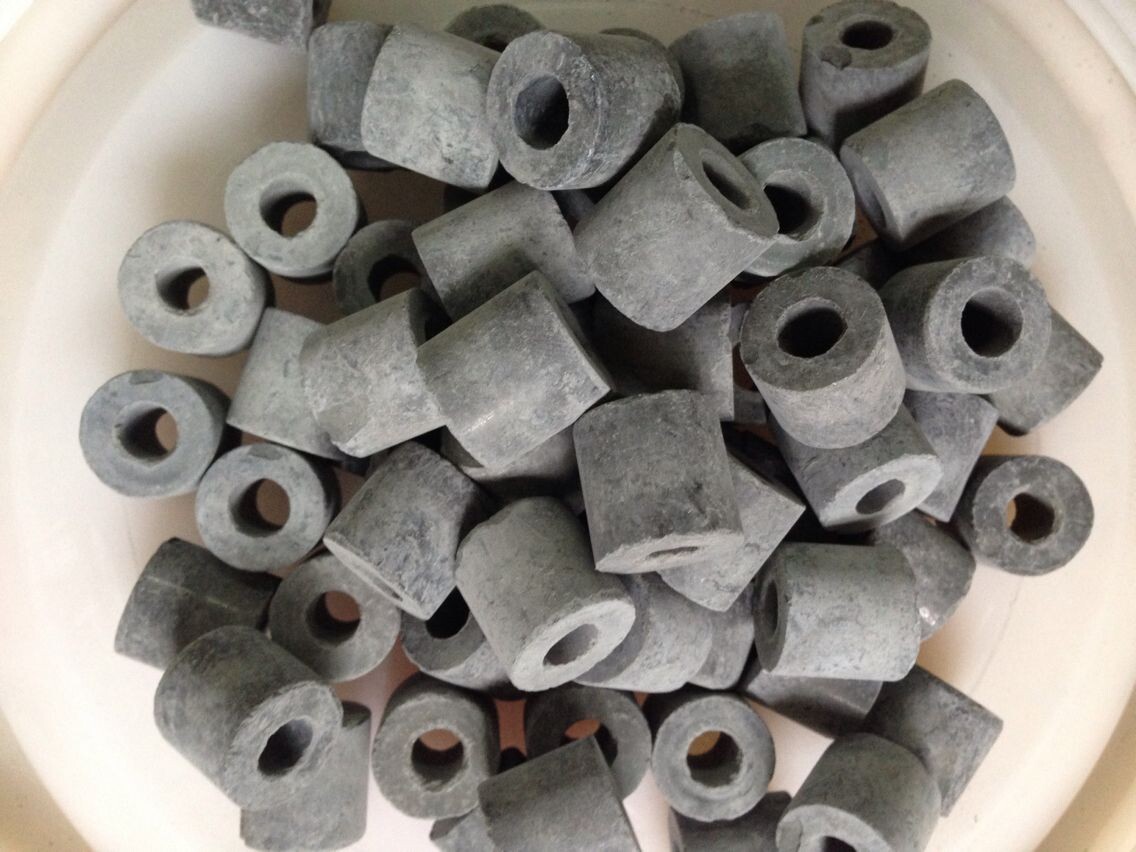

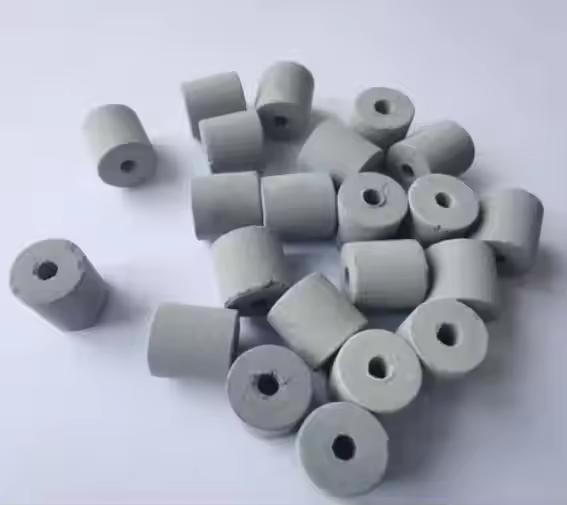

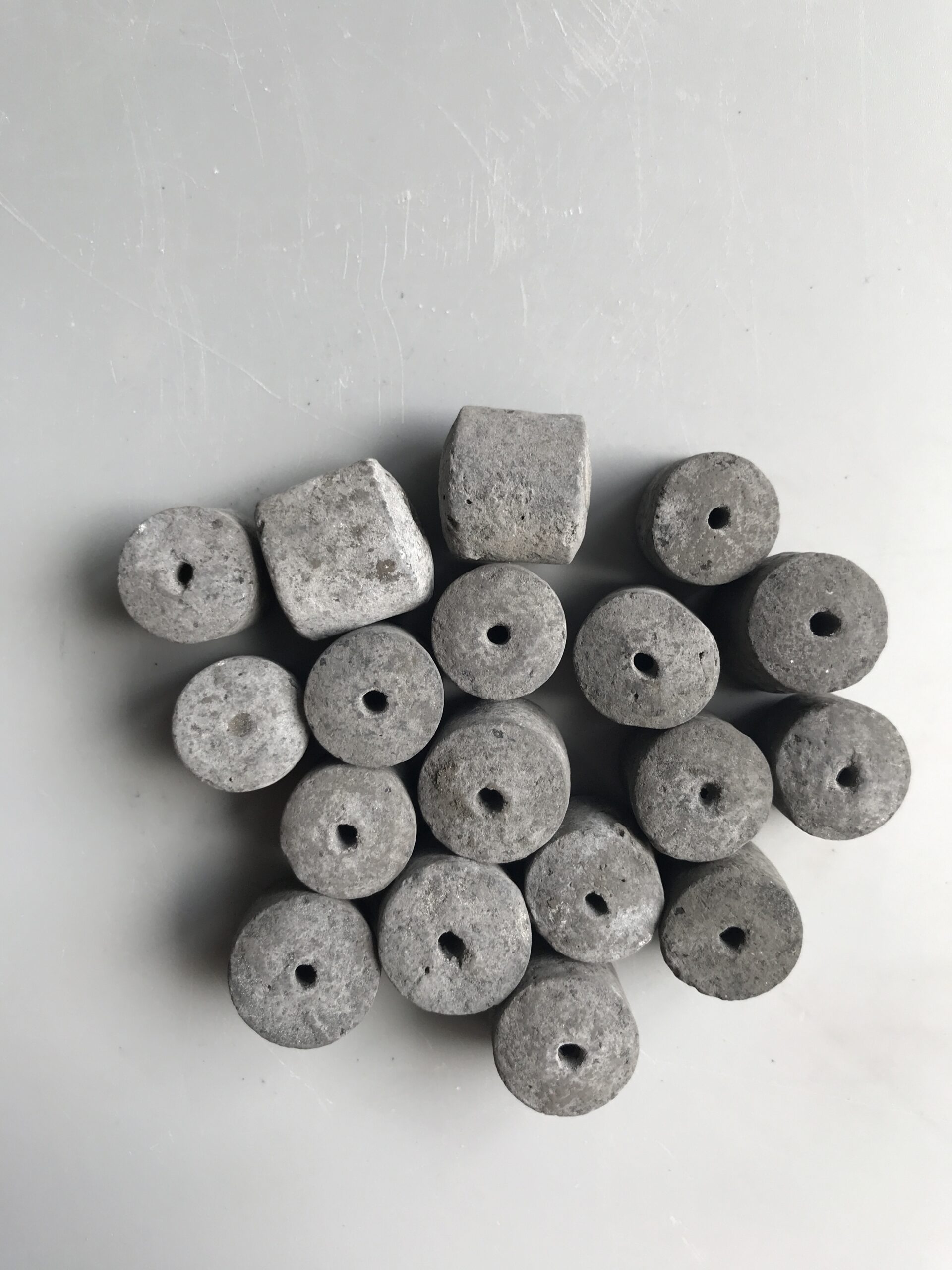

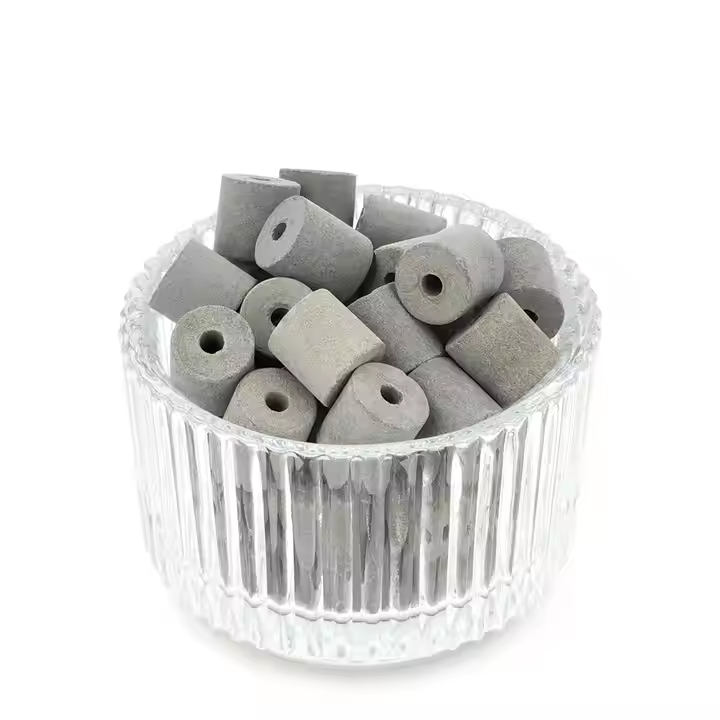

1) appearance and size: slate gray rasching ring
2) geometric dimension (inner diameter  ×outer diameter  ×height):   9 × 19 ×19 （mm）
3) bulk density: kg/L  1.10~1.20
4) heat-resistance: long-term operation under 1200℃, non-melting,non-shrink,non-deformation, good structure stability and high strength.
5) chemical composition ( % ) NiO ≥ 14.00； SiO 2≤ 0.20；AI2O3—55; CaO—10; Fe2O3≤0.35; K2O+Na2O≤0.3; Burning loss weight≤ 20
6) crushing strength N/ particle ≥ 400
7) the percentage of low-intensity particles(the percentage of below 180N/particle):    ≤5.0%
8) heat-resistance indicator: non-adhesion and fracture in two hours at 1300℃

3 .reference operating conditions
1)pressure: 0.01MPa-0.10MPa
2)temperature: 750℃-850℃
3)ammonia space velocity: 350-500 hr-1
4)ammonia decomposition rate: 99.99% (min)
5)service life:2years min.

4 .Packaging and storage

Available in iron barrel innerling  plastic bags, net weight per drum of 50 kg. Outside the barrel, making a clear logo,including the production name, model, specification, weitht (kg), and the name of production plant, etc. And making sure product quality certification in the drum. The following item should be paid attention during the transportation: mositure-proof, anti-collision, anti-falling, and rolling carry prohibited. Product should be stored in dry warehouse.
